Earth Moving / Rollers

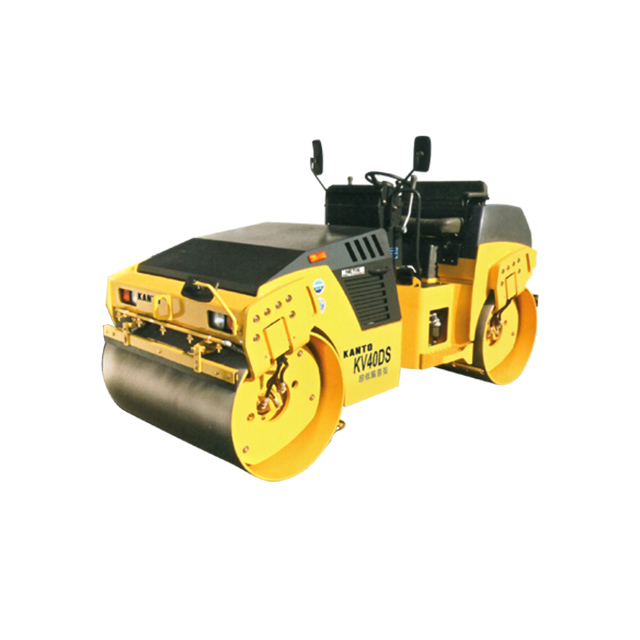

Kanto Tekko KV40DS Tandem Type
Brand
Kanto Tekko
Model
KV40DS Tandem Type
Operating Weight
4,000kg
Dimension
1.38 x 3.1 x 1.63(W x L x H)m
Weight
3,690kg
  • Chassis Mark: KVR40D
  • Load in Front (kg): 2,000
  • Load on Rear (kg): 2,000
  • Roller Width x Diameter (m): 1.3 x 0.8
  • Tire Size x Numbers of Tires: 1.3 x 0.8
  • Wheelbase (m): 2.3
  • Ground Clearance (m): 0.25
  • Curve Clearance (m): 0.6 (Right and Left)
  • Side Clearance (m): 0.04 (Right and Left)
  • Engine Chassis Mark : Kubota D1703-EDM
  • Engine Rated Output KKW/min-1 [PS/rpm]: 21.2/2,300 [28.8/2,300]
  • Displacement (L): 1.65
  • Rolling Wheel Frequency Hz [vpm]: 55 [3,300]
  • Centrifugal Force KN [kg]: 24.5 [2,500] x 2
